Cargo Slide & Double Floor Edge Height for Ranger PHEV

NOTE!
This cargo slide is glued to the vehicle's bed to avoid work around the vehicle's high-voltage battery. This means the installation can only be done by certified technicians in our workshops.
Contact your local facility to book installation.

This kit fits Ford Ranger PHEV from model year 2025.

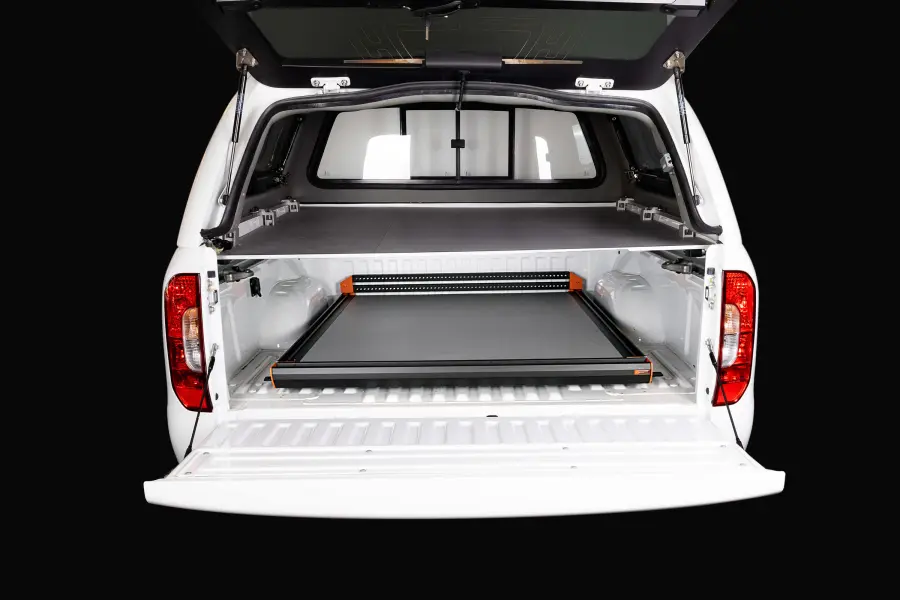

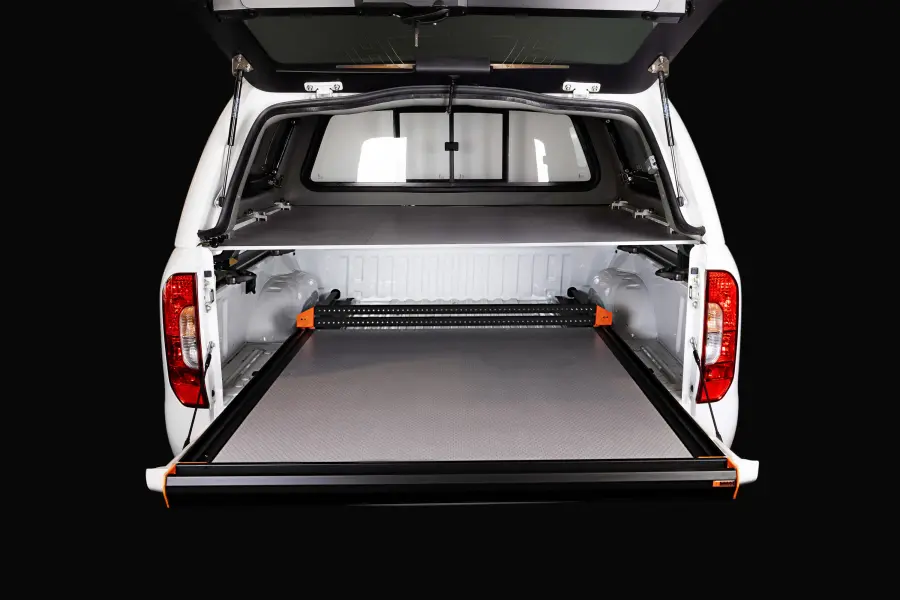

Optimize your storage possibilities in the car through a double floor & a pull-out cargo slide.
This double floor is placed at the edge height of your pickup which provides an additional area to store tools, materials, or similar items.

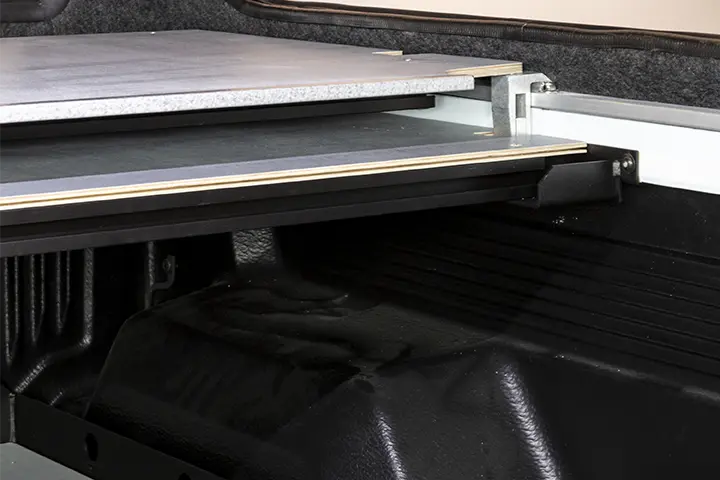

The boards can either be mounted or you can choose to have them removable for easily loading larger objects.

Height Double Floor: 500mm
Loading height between cargo slide & Double Floor: 320mm

Outer dimensions cargo slide:
L: 1400mm
W: 1080mm

Loading area cargo slide:
L: 1285mm
W: 1100mm

Extraction length: 70%
Interval of extraction step: 50mm

Max Load Weight cargo slide: 350Kg
Max Load Weight over floor: 200Kg
(We DO NOT recommend loading 200Kg at this height for safety reasons.)

The mounts and cargo slide are made in powder-coated steel and aluminum.
The floorboards are non-slip birch plywood.
