Sled & Double Floor SP-Combo Toyota Hilux

Retractable cargo sled and pull-out drawers with elevated floor for Toyota Hilux 2015-.

Note! The floor panel is adapted for beds lined with tread plate!

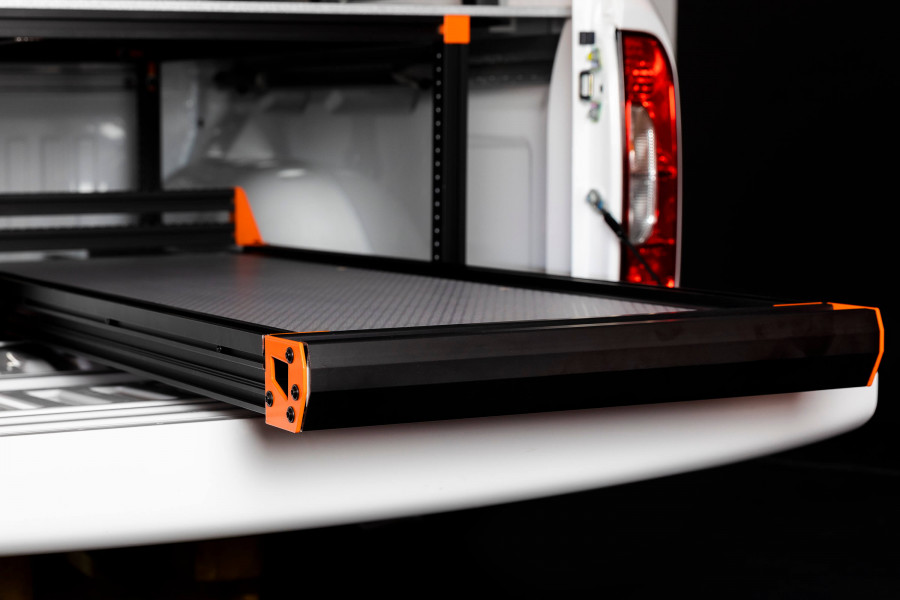

Maximize your reach into your cargo space with a retractable sled. Optimizes the working environment by allowing even heavy loads such as tools to be pulled out of the vehicle and lifted in an ergonomically correct way. The entire construction is made of black anodized high-strength aluminum with powder-coated steel fasteners and thus has a very low weight to reduce the effect on the total load weight. With a fully modular concept, we can offer the sled just for your vehicle and your needs. The sled is easily pulled out with only one hand by pressing the lock handle while pulling the sled outward. Together with spring-loaded locks and multiple stages along the extension length, it ensures the sled quickly stops while loading even if the vehicle is parked on an incline. With a wide range of accessories, you can complement your sled for a uncompromising interior.

Popular accessories:
Edge guard side
Adjustable divider
Load loops

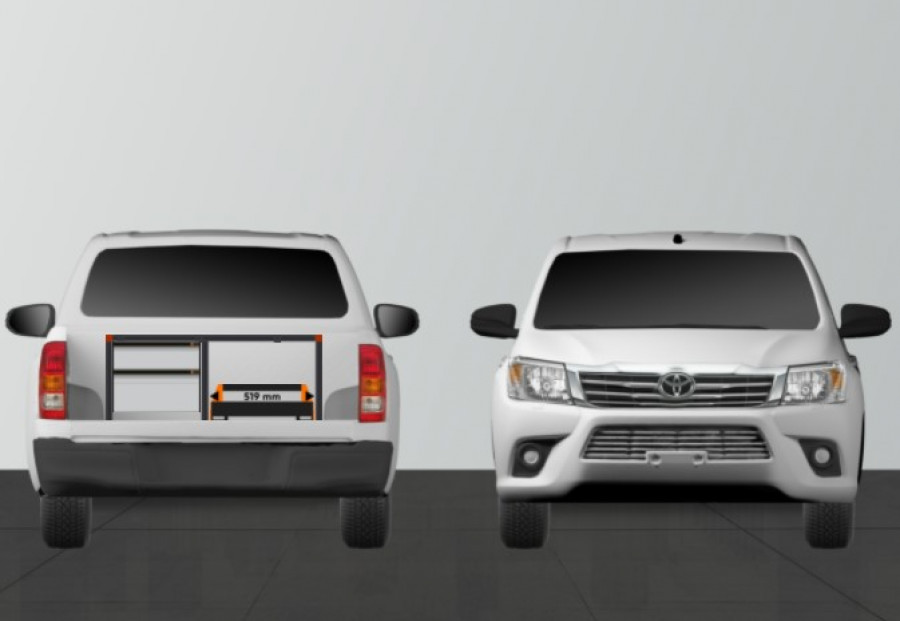

External dimensions sled:
L: 1400mm
W: 520mm

Loading surface sled:
L: 1285mm
W: 435mm

Loading height: 74mm
Total height (Incl. Edge guard front): 180mm
Lock rule clearance (Excl. Spacers): 20mm

Extension length: 70%
Interval extension step: 50mm

Load weight:
350kg

A universal mounting kit with instructions for mounting the cargo sled in your vehicle is included with the sled.
