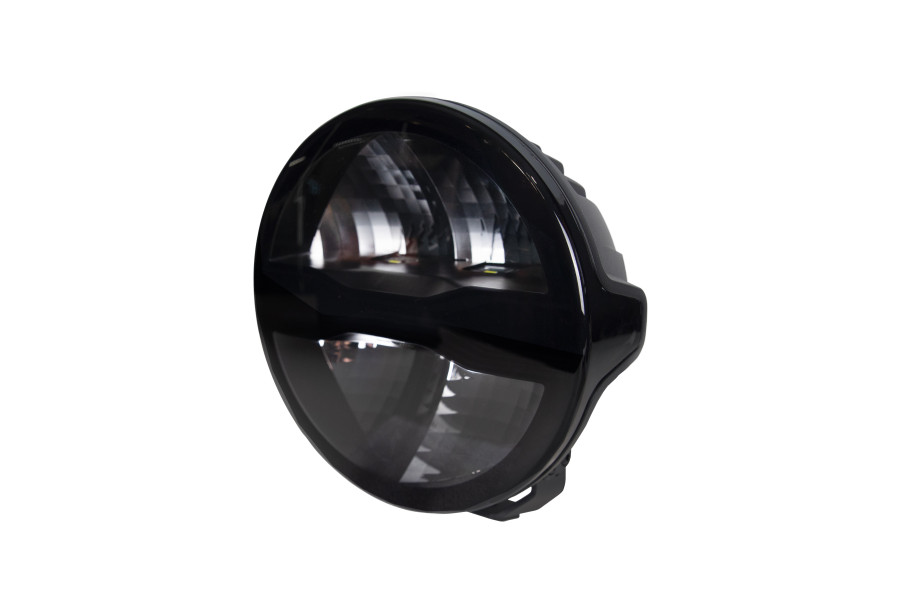

FOR9T Dragon Drive extra light

The new E-approved Dragon Drive has now been updated with E-mode and Xperience mode, allowing you to achieve perfectly balanced lighting on all roads. In Xperience mode, you get an output of 9,300 actual lumens and a range of 600 metres. E-mode is ECE R148/149 approved with a reference number of 20, which is required in many European countries and is also ideal for driving in poor weather conditions.

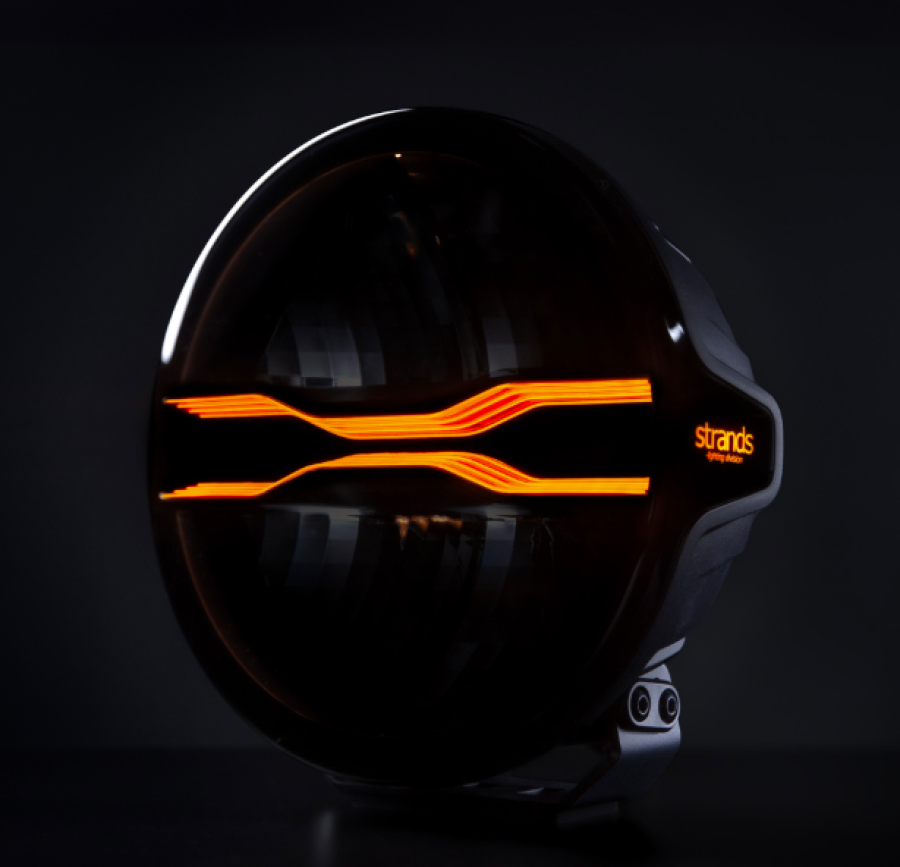

The adapted light output reduces glare from rain, snow, or fog. Thanks to the two modes, you can enjoy optimal illumination in all situations. The FOR9T dual position light in white and amber delivers a unique look, with hypnotic lines that place you at the centre of the action. When not in use, the position lights are dark and invisible against the lens. Made from high-quality aluminium and polycarbonate, and with an IP67 rating, you can be confident that Dragon Drive is a durable addition to your vehicle. Installation is easy thanks to the DT-4 connector.

Voltage: 10–48 V DC
Theoretical power: 145 W
Consumption: 135.0 W
Functions: High beam, white position light, amber position light, logo light
Xperience mode: 135 W
E-mode: 30 W
White position light: 4.9 W
Amber position light: 5 W
Theoretical lumen output: 14,000 lm
Actual lumen output:
E-mode: 3,000 lm
Xperience mode: 9,300 lm
1 lux at: E-mode: 305 m
Xperience mode: 600 m
Colour temperature: 6,500 K
Beam pattern: Extended beam
Beam angle: 17.4°
Connection: DT-4 pin
Cable length: 550 mm
Housing colour: Black
Lens colour: Clear / Dark
LED colour: White and amber
Bracket material: Stainless steel
Housing/chassis material: Aluminium
Lens material: Polycarbonate
Length: 220 mm
Depth: 90 mm
Height: 220 mm
Height including bracket: 226 mm
Diameter: 220 mm
Weight: 2.3 kg
IP rating: IP67
Operating temperature: −40 to +65 °C
E-approved: Yes
According to regulation: ECE R148, R149
EMC: ECE R10
