Control system 2.8 controls working lights and warning lights

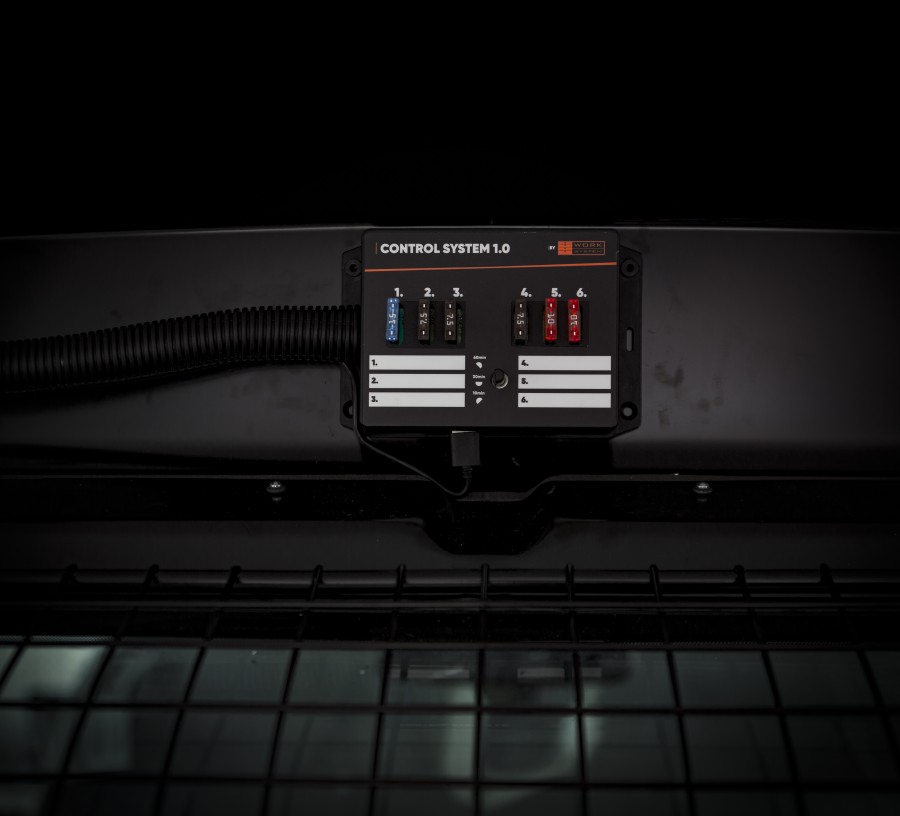

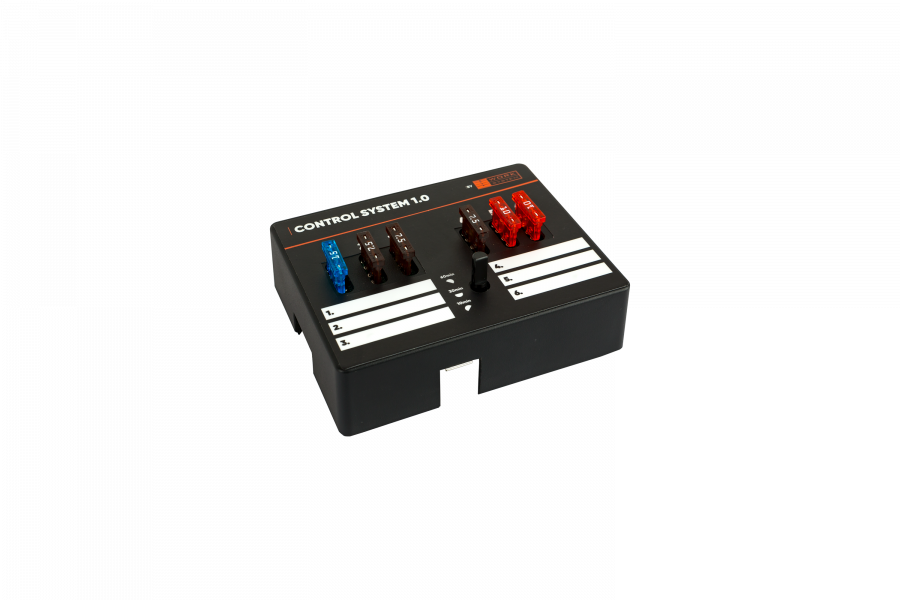

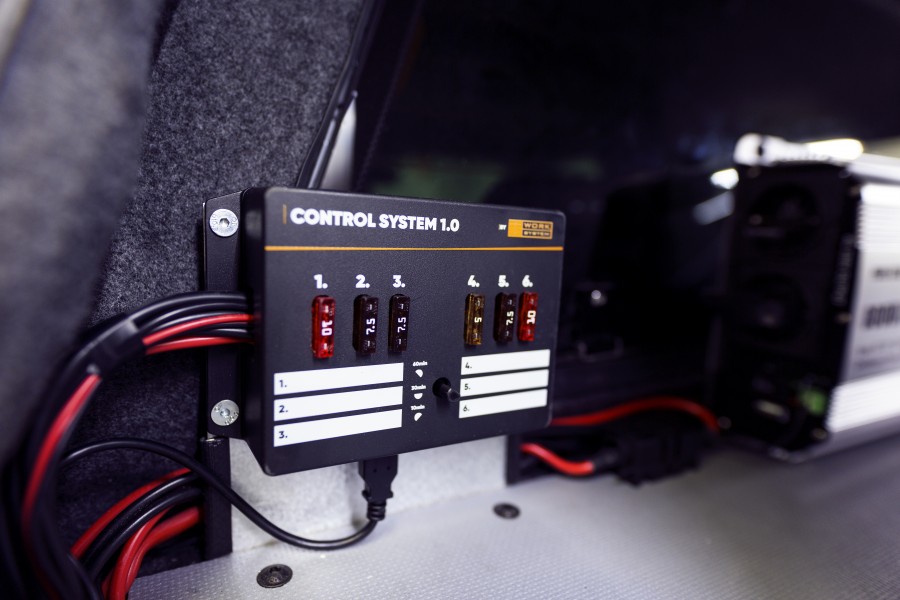

Control system

Intended for 12 V voltage Max 14.5 V
Fused max. 50 A
Each separate output is fused with max 10 A

Connection inputs:
Connection of keypad via 5 m mini USB cable
All outputs have analogue inputs that can be controlled, for example, by buttons and signals (12 v) from the vehicle.
Works with both a short trig signal and a closed circuit.
With a spring-loaded switch (signal less than 0.8 sec) the extra battery is activated on the first pulse and switched off on the next pulse.
However, a constant signal (longer than 0.8 sec) activates the extra battery on activation and when the circuit is broken again the extra battery is deactivated.

Built-in timer for interior lighting from 10 min to being constantly on.
A spring-loaded button has to be used for timers.

Built-in battery monitor which switches off at 11.7 V and is reactivated over 12.5 V.
Lighting on the keypad is activated over 12 v and stays lit for 10 min after the voltage falls below 12 v.
Function for night locking on warning lights. The first button on the keypad is daylight and the next button is night lock.
With a switch on the box, you can choose to use only class 1 or both classes 1 and 2.
The unit also has a constant 12 V output as long as the voltage is above 11.7 v
