Product information

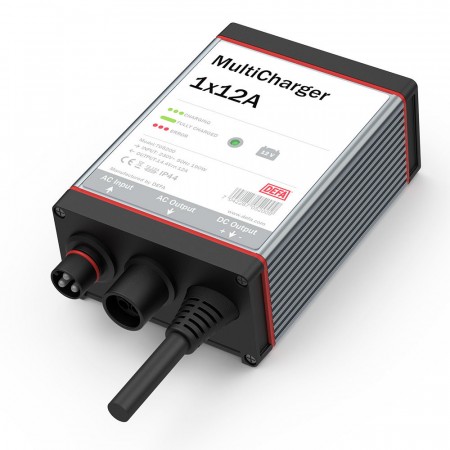

The DEFA 1x12A battery charger is based on modern switch mode technology that represents the latest technology in battery charging. This is a guarantee that the battery will have an optimum service life. The charger can be used on all types of lead-acid (AGM, GEL and freely ventilated) batteries.
With Defa’s plug-in system, you can easily build up to a 230v socket and several chargers and cup fan, etc.
The DEFA MultiCharger 1x12A can handle battery sizes up to 150Ah and can maintain the battery for an unlimited period of time without damaging the battery. The charger can handle parallel loads of up to 6A from other extra batteries at the same time as it charges. The charging voltage is temperature-compensated with an external sensor.
NB! Do not forget to supplement with a connection kit.

Technical data:
Input Volt 230V AC
Temperature -35 to +50C
Charging Voltage: 14.4V Dc (temperature compensated approx. 5.0mV/C/cell ref 25C)
Maintain charging 13.5V DC
Charging current: 12A
Certifications: EN60335-1, EN60335-2-29, EN55014-1, EN55014-2, EN61003-3/2
