Product information

Lithium Power Supply is a complete kit built around PG3.0L Unit Inverter Charger and an M12-200 LiFePO4 battery of 200 Ah. The unit delivers full power at 3 kW within the entire temperature range –20 to +50 °C, with no power reduction – and the battery's built-in heating protects cells and ensures charging even in winter.

Automatic power distribution
Bidirectional DC/DC charges the auxiliary battery from the generator and assists the starter battery when needed – automatically.
Built-in MPPT distributes solar energy to both batteries.
Adjustable charging current from the starter battery to ensure the generator and battery never overload.

Reduce the charger's power output at 10 A-fused outlet to prevent a blown fuse, for instance, when using a cabin fan with the connection. A priority relay powers all 230 V outlets immediately upon connection, while the battery charges up to 200 A.
An integrated IMD switch continuously monitors isolation and shuts down in case of fault.

The included M12-200 battery of 200 Ah and 2.56 kWh is a lithium iron phosphate package with built-in BMS that protects against short circuits, overcharging, and deep discharge – and a heating element that automatically activates when the temperature is too low for safe charging. Certified for over 3,000 cycles at full depth of discharge.

Kit contains
PG3.0L Uni Inverter Charger
M12-200 LiFePO4 battery, 200 Ah
Power cables 1.5 m + communication cable
Cable kit 2 m (230 V)
Switch button for start

Expand as needed

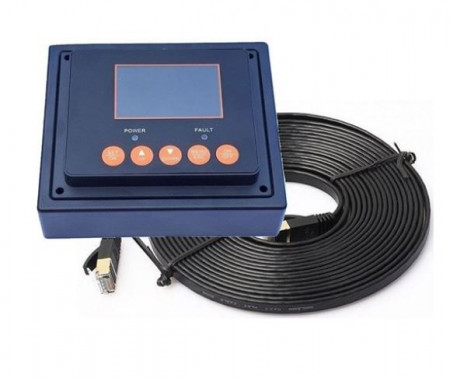

The kit can be extended with accessories like display, solar cells, and Defa connection kit for even more flexibility and control.
