Product information

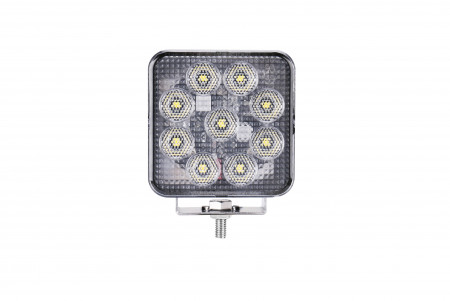

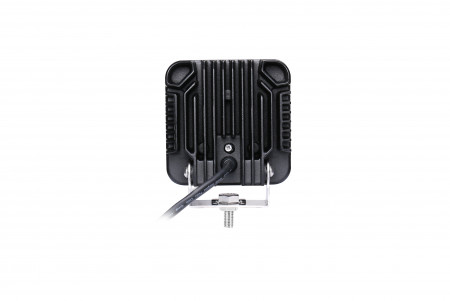

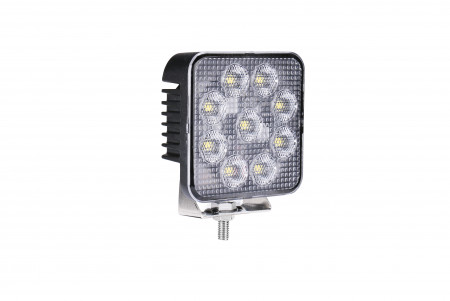

Unity is a work light series with infinity design and revolutionary strong light output. Built to surviving and illuminate the harshest work environments. The series consists of several different models with various power output to meet the user's needs.

The infinity design let the lens stretches into the corners, which makes it a perfect match together with today´s modern vehicles. Powerful lighting usually produces more heat which means the lamp can break. But the built-in temperature control protects it which makes it to one of the most durable products on the market.

Type of LED — OSRAM
PCS LED´s — 9
Voltage (V DC) — 9-32V DC
Theoretical effect (w) 12V — 54
Theoretical effect (w) 24V — 54
Consumption (w) 12V — 63.9
Consumption (w) 24V — 66.3
Theoretical lumen — 6187
Actual lumen — 5200
1 LUX @ m — 71
Kelvin — 6000
IP-class — 67/69K
Colour housing — Black
Colour lens — Clear
Colour LED´s — White

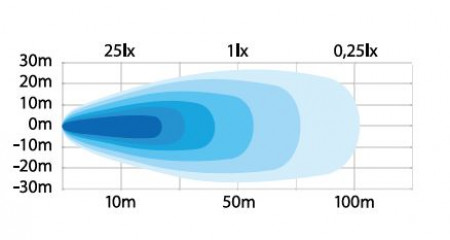

Beam pattern — Flood
Connection — DT
Cable length (mm) — 520
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 101
Depth (mm) — 45
Height (mm) — 101
Height including bracket (mm) — 114,4
Operating temperature — -20°C - +40°C
EMC — ECE R10
Mounting details included — Screws. washers. Bolts
