Product information

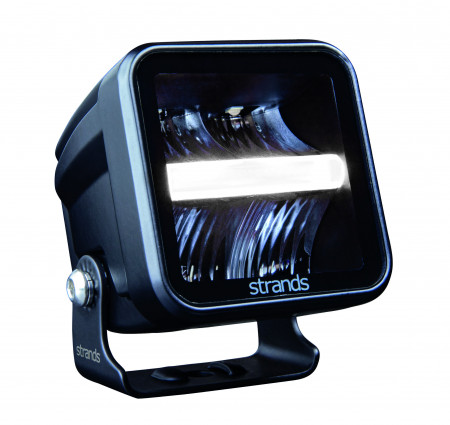

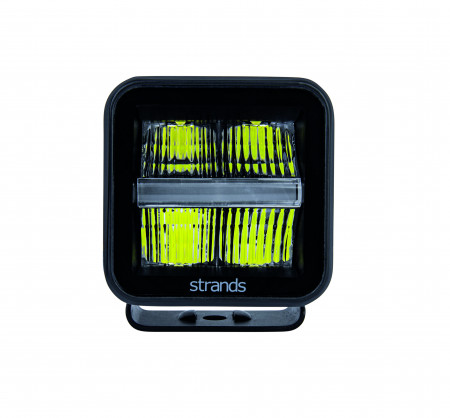

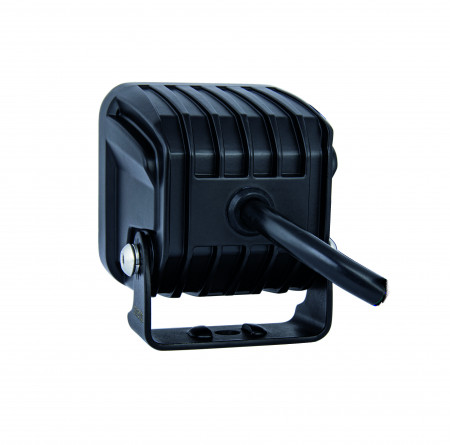

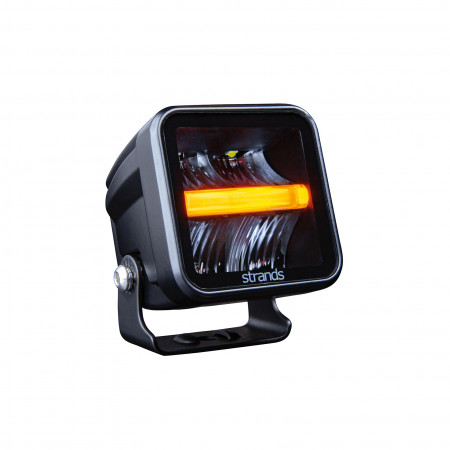

Siberia Qube is a work lamp developed to provide a wide light spread. Delivers 1 lux at 166 meters. Siberia Qube has a discreet, compact design, which makes it perfect on smaller vehicles where there is no room for larger lamps. Can be used both alone and in pairs. The lamp also has a duo position light with amber and white light.

Type of LED — Osram
PCS LED´s — 4
Voltage (V DC) — 9-32V DC
Theoretical effect (w) 12V — 40
Theoretical effect (w) 24V — 40
Consumption (w) 12V — 37.1
Consumption (w) 24V — 36.5
Functions — Temperature control system
Theoretical lumen — 4800
Actual lumen — 2949

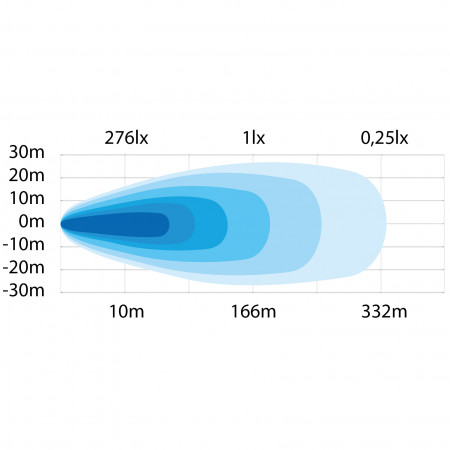

1 LUX @ m — 166
Kelvin — 6000
IP-class — 67/69K
Colour housing — Black
Colour lens — Clear
Colour LED´s — Amber
Beam pattern — Flood
Position light — Yes. amber and white
Connection — DT-4
Cable length (mm) — 500
Material bracket — Stainless steel
Material housing/chassi — Aluminium
Material lens — Polycarbonate
Length (mm) — 72
Depth (mm) — 72
Height (mm) — 72
Height including bracket (mm) — 81,5
Operating temperature — -20°C - +45°C
ADR-approved — No
E-approved — No
EMC — ECE R10
Black cable — - (Negative)
Red cable — + (Positive)
White cable — White Position light
Yellow cable — Amber Position light
Mounting details included — Screws. washers. Bolts
