Product information

This kit is suitable for Nissan Navara Double Cabs from 2016 model onwards.

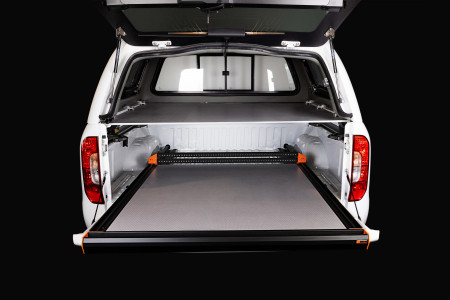

Optimise the storage in your van with a double floor & extendable slide.
This double floor is placed at the height of the limb edge of your pick-up truck, which provides an additional surface for storing tools, materials or the like.
The panels can either be fixed or removable so you can easily load larger objects.

Height Double Floor: 450 mm
Load Height between Slide & Double Floor: 305 mm

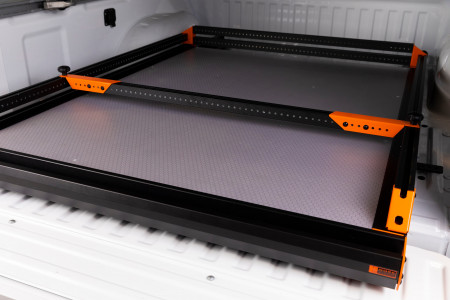

Slide external dimensions:
L: 1400 mm
W: 1010 mm

Loading surface, slide:
L: 1285 mm
W: 925 mm

Loading height: 74 mm
Total height (Incl. Protective edge at the front): 180 mm
Clearance for locking bar (Excl. Spacers): 20 mm

Extension length: 930 mm
Interval Extension steps: 50 mm

Max. Load capacity Slide: 350 kg
Max. Load capacity, upper floor: 200 kg
(For safety reasons, we do NOT recommend loading 200 kg at this height.)
